Prepare Data

Warning

You need to run each script individualy and quit your Python instance before running the next script to prevent them from crashing.

The RedSpec package expects files to be formatted in a specfic way and specfic directory structure. The first script, 0_Prepare_Data.py, will process the input data, modify it, and sort it into the correct directory structure. To begin, you should place all of your raw .fits files in a single directory, by default called raw_data. This directory should be in the same place as the RedSpec scripts.

An example directory structure is shown below. It is not immediately obvious which files are bias, flats, calibration, or science frames, but the script will read the header information to sort them into more meaningful directories.

0_Prepare_Data.py

raw_data/
├── ccd0001c1.fits
├── ccd0002c1.fits
├── ccd0003c1.fits
├── ccd0004c1.fits
├── ccd0005c1.fits
├── ...

The prepare_data function will read in these files as well as their header information to sort them into their respective directories and setup a directory structure such as this one:

bias/
├── Bias_ccd0001c1.fits
├── Bias_ccd0002c1.fits
├── Bias_ccd0003c1.fits
├── ...

AT2022xzc/
├── AT2022xzc_ccd0091c1.fits
├── AT2022xzc_ccd0092c1.fits
├── AT2022xzc_ccd0093c1.fits
├── Flat_QH_ccd0095c1.fits
├── HeNeAr_ccd0101c1.fits

LTT3218/
├── Flat_QH_ccd0062c1.fits
├── HeNeAr_ccd0061c1.fits
├── LTT3218_ccd0060c1.fits

The first directory is a bias directory that contains all the bias files. Each additional directory (e.g. 2022xzc) contains the science targets, as well as their corresponding calibration files such as flats and arcs. Note that the actual names of the objects and calibrations depend on the information retrieved from the headers. Alternatively, if you have a single set of flats for the entire dataset, you can leave out the individual flats from each directory.

Once the data is sorted, the script will modify each file to be in the required format. The scrips expect each files to be a 1D spectrum with a single object near the center oriented with the wavelength increasing along the x-axis and the spatial direction along the y-axis. Therfore, the script will either rotate, flip, or crop each input .fits file from raw_data into the expected format. An example image of how the spectrum files should look is shown below.

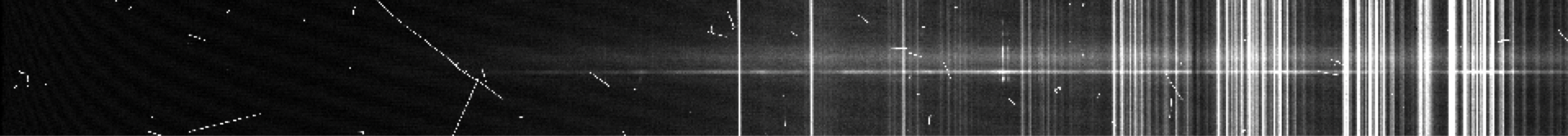

Example of a 1D spectrum

Example of a 1D spectrum from LDSS3c. Cropped to have the target trace near the center, with wavelength increasing along the x-axis, and the spatial direction along the y-axis.

Running the script

When running the 0_Prepare_Data.py script, we recommend you start by running the extract_fits_info function, which creates a “nightlog” style file with all the information extracted from the headers of the input .fits files. Since the header keywords vary from instrument to instrument, you will need to modify the parameters of the function to match the instrument you are using. Some examples of parameters that can be read with extract_fits_info for different instruments are provided below.

# Magellan IMACS
extract_fits_info('raw_data/*c8.fits', ['OBJECT', 'EXPTYPE', 'EXPTIME', 'RA', 'DEC', 'DATE-OBS', 'TIME-OBS', 'FILTER', 'DISPERSR', 'BINNING', 'AIRMASS'])

# MMT Binospec
extract_fits_info('raw_data/*.fits', ['OBJECT', 'IMAGETYP', 'SCRN', 'EXPTIME', 'RA', 'DEC', 'DATE-OBS', 'FILTER', 'MASK', 'DISPERS1', 'DISPERS2', 'HENEAR', 'MJD', 'AIRMASS', 'EXPMODE', 'PI'], header_index = 1, data_index = 1)

# FLWO FAST
extract_fits_info('raw_data/*.fits', ['OBJECT', 'EXPTIME', 'RA', 'DEC', 'DATE', 'APERTURE', 'DISPERSE'])

# WHT
extract_fits_info('raw_data/*.fits', ['OBSTYPE',  'OBJECT', 'EXPTIME', 'RA', 'DEC', 'DATE-OBS', 'UT', 'AIRMASS', 'ISISLITW', 'DISPERSI', 'ISIFILTA', 'ISIFILTB', 'ISIGRAT', 'ISIARM', 'CENWAVE'])

# Magellan LDSS
extract_fits_info('raw_data/*c1.fits', ['OBJECT', 'EXPTYPE', 'EXPTIME', 'BINNING', 'RA', 'DEC', 'DATE-OBS', 'TIME-OBS', 'FILTER', 'GRISM'])

# MMT Blue Channel
extract_fits_info('raw_data/*.fits', ['IMAGETYP', 'OBJECT', 'EXPTIME', 'RA', 'DEC', 'DATE-OBS', 'UT', 'AIRMASS', 'APERTURE', 'DISPERSE', 'CENWAVE'])

# SOAR Goodman
extract_fits_info('original/*.fits.fz', ['OBSTYPE', 'OBJECT', 'EXPTIME', 'RA', 'DEC', 'DATE-OBS', 'UT', 'AIRMASS', 'FILTER', 'FILTER2', 'GRATING', 'SLIT'], header_index = 1, data_index = 1)

# APO Kosmos
extract_fits_info('raw_data/*.fits', ['OBJNAME','RA','DEC','DATE-OBS','IMAGETYP','EXPTIME','DISPERSR','QUARTZ','NEON','SLIT','FILTER2','FILTER1'])

# Gemini GMOS
extract_fits_info('input/*.fits', ['OBJECT', 'OBSTYPE', 'OBSCLASS', 'EXPTIME', 'RA', 'DEC', 'WAVELENG', 'UT', 'DATE', 'DETECTOR', 'CONID', 'SHUTTER', 'FILTER1', 'FILTER2', 'GRATING', 'GAIN', 'RDNOISE', 'CCDSUM', 'GRTILT'])

After running this function, you can then run the main prepare_data function, which will sort and modify each input file. Again, a list of examples for different instruments is provided below.

# Magellan IMACS
prepare_data('raw_data/*c8.fits', variables = [''], rotate = True, crop = True, break_character = ' ', instrument = 'IMACS1')

# MMT Binospec 270
prepare_binospec()

# MMT Binospec 600
prepare_binospec(disperser_name = 'x600')

# FLWO FAST
prepare_data(variables = [''], rotate = False, crop = False, break_character = '', disperser = 'DISPERSE', filter_name = '')

# WHT
prepare_data(variables = ['ISIARM'], rotate = True, crop = True, break_character = ' ', disperser = 'ISIGRAT', filter_name = '', datasec_key = 'RTDATSEC', data_index = 1, rotations = 1)

# Magellan LDSS
extract_fits_info('raw_data/*c1.fits', ['OBJECT', 'EXPTYPE', 'EXPTIME', 'BINNING', 'RA', 'DEC', 'DATE-OBS', 'TIME-OBS', 'FILTER', 'GRISM'])

# MMT Blue Channel
prepare_data(variables = [''], rotate = False, crop = True, break_character = ' ', disperser = 'DISPERSE', filter_name = '', instrument = 'BlueChannel')

# SOAR Goodman
pre_prepare_data('original/*.fits.fz')
prepare_data('raw_data/*.fits.fz', variables = [''], rotate = False, crop = True, break_character = ' ', disperser = 'GRATING', filter_name = '', instrument = 'Goodman', header_index = 0, data_index = 0)

# APO Kosmos
prepare_data(variables = ['DISPERSR'], rotate = True, crop = True, disperser = 'DISPERSR', instrument = 'Kosmos', filter_name = '', objname = 'IMAGETYP', datasec_key = 'CSEC11', biassec_key = 'BSEC11')

Note that Binospec has its own separate prepare_binospec function because it requires a slightly different approach. Similarly, the Goodman instrument at SOAR requires a separate function to extract the data from the .fits.fz files and turn them into regular .fits files before running the main prepare_data function.

Warning

Sometimes not all data will be sorted in the right place (e.g. if the calibration files do not have their corresponding target name in the header). In this case, you should manually move the files around to match the required structure.
